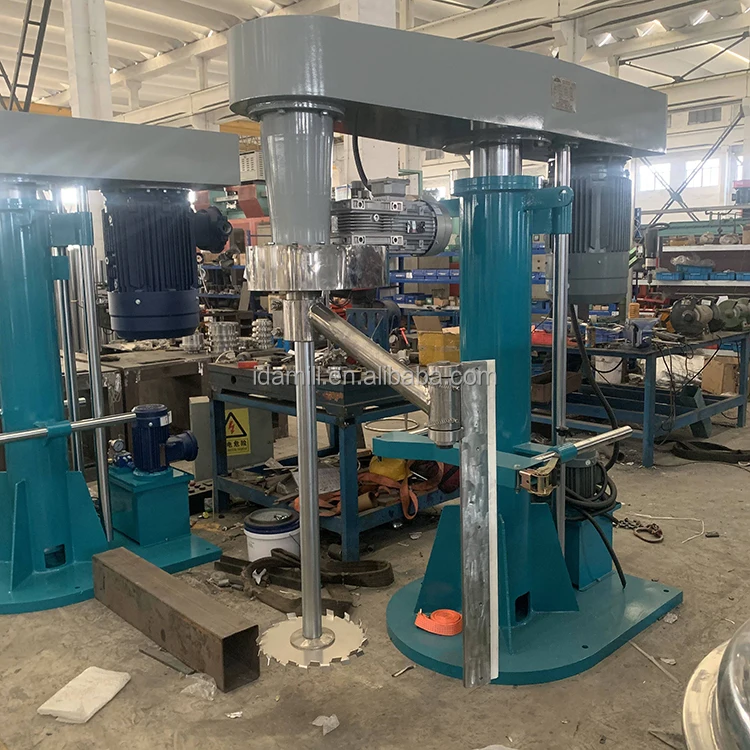

Suitable to stir and mix the high viscosity materials in coating and printing ink industries. The frame stirring device makes the material mixed and prevents it from sticking on the walls. The high speed disperser makes the materials be mixed and dissolved adequately and the product can reach the requirement in short time.
| Type | TSJ-300 | TSJ-500 | TSJ-1000 | TSJ-1500 | |
| Power (kw) | high speed shaft | 7.5-11 | 11-15 | 15-22 | 30-37 |
| low speed shaft | 0.75-1.1 | 1.1 | 1.5 | 2.2 | |
| Speed (r/min) | high speed shaft | 1450 | 1450 | 1450 | 1450 |
| low speed shaft | 10 | 10 | 10 | 10 | |
| Capacity (L) | 300 | 500 | 1000 | 1500 | |
| Pump power (kw) | 1.1 | 1.5-2 | 1.5 | 2.2 | |
Main Features
1.Applicable for low, medium and high viscosity material mixing(3000-20000cps).
2.The low speed blade rotate around tank wall, to push the material on wall and corner to central to prevent vapor pocket and bad formula, also for easy cleaning.
3.High speed gear impeller can disperse powerfully and mixing in short time.
4.The high speed and low speed can opearte independently.
